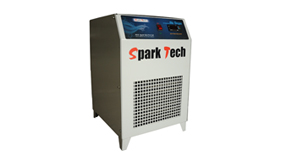

Air Dryer

Capacity CFM	Spark 40	Spark 60	Spark 80	Spark 100	Spark 150	Spark 200	Spark 250	Spark 300	Spark 400	Spark 500
Compressor	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker	Kirlosker
Dryer Filters	Donfos	Donfos	Donfos	Donfos	Donfos	Donfos	Donfos	Donfos	Donfos	Donfos
Maximum Working Pressure Kg/cm2	40	40	40	40	40	40	40	40	40	40
Pressure Drop 0°C	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Air Inlet Temp 0°C	45	45	45	45	45	45	45	45	45	45
Air inlet / outlet Connection (BSP)	1 / 2 "	1 "	1 "	1 1 / 2 "	1 1 / 2 "	1 1 / 2 "	2 "	2 "	2 "	2 "
Auto Drain Outlet(BSP)	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "	1 / 2 "
Refrigerant	R 134 A	R 134 A	R 134 A	R 134 A	R 134 A	R 134 A	R 134 A	R 134 A	R 22	R 22
Power Supply	AC 220 V	AC 220 V	AC 220 V	AC 220 V	AC 220 V	AC 220 V	AC 220 V	AC 220 V	AC 415 V	AC 415 V
Power Comsumption KW	0.4	0.4	0.6	0.6	1	1	1.7	1.7	2.3	2.5
Pressure Dew Point 0°C	4	4	4	4	4	4	4	4	4	4
Atmospheric Dew Point 0°C	(-)22	(-)22	(-)22	(-)22	(-)22	(-)22	(-)22	(-)22	(-)22	(-)22
Length(MM)	420	500	500	600	600	600	600	950	950	950
Height(MM)	650	730	730	900	1000	1000	1000	1300	1300	1500
Width(MM)	550	560	560	750	750	750	750	900	900	900
Weight(MM)	55	100	110	140	140	140	160	160	200	275
